Original price was: ₹18,000.00.₹16,650.00Current price is: ₹16,650.00.
Specification
|
Output |
|
|
Output power capacity |
865Watts / 1.5 kVA |
|
Max Configurable Power (Watts) |
865Watts / 1.5 kVA |
|
Nominal Output Voltage |
230V |
|
Efficiency at Full Load |
85.0 % |
|
Output Frequency (sync to mains) |
50/60 Hz +/-1 Hz |
|
Topology |
Line Interactive |
|
Waveform type |
Stepped approximation to a sinewave |
|
Transfer Time |
6ms typical : 10ms maximum |
|
Input |
|
|
Nominal Input Voltage |
230V |
|
Input frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
|
Input Connections |
India 3-pin 16A |
|
Cord Length |
1.52meters |
|
Input voltage range for main operations |
160 – 280V |
|
Number of Power Cords |
1 |
|
Efficiency at Full Load |
85.0 % |
|
Batteries & Runtime |
|
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Typical recharge time |
7.2hour(s) |
|
Expected Battery Life (years) |
2 ? 4 |
|
Replacement battery cartridge note |
9Ah x 2 internal batteries |
|
RBC Quantity |
1 |
|
Extended Run Options |
APC-Power-Saving-Back-UPS-Pro-1500-230V-India |
|
Communications & Management |
|
|
Interface Port(s) |
USB |
|
Control panel |
Multi-function LCD status and control console |
|
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
Surge Protection and Filtering |
|
|
Surge energy rating |
680Joules |
|
Data Line Protection |
Analog phone line for phone/fax/modem/DSL (RJ-11 connector) Network line – 10/100/1000 Base-T Ethernet (RJ-45 connector) |
|
Physical |
|
|
Maximum Height |
301mm 30.1cm |
|
Maximum Width |
114mm 11.4cm |
|
Maximum Depth |
382mm 38.2cm |
|
Net Weight |
11.76kg |
|
Shipping weight |
13.19kg |
|
Shipping Height |
381mm 38.1cm |
|
Shipping Width |
229mm 22.9cm |
|
Shipping Depth |
483mm 48.3cm |
|
Color |
Black |
|
Master Carton Units |
2.0 |
|
Master Carton Weight |
28.14 |
|
SCC Codes |
1073130426879 3 |
|
Environmental |
|
|
Operating Environment |
0 – 40 øC |
|
Operating Relative Humidity |
0 – 95 % |
|
Operating Elevation |
0-3000meters |
|
Storage Temperature |
-15 – 45 øC |
|
Storage Relative Humidity |
0 – 95 % |
|
Storage Elevation |
0-15000meters |
|
Audible noise at 1 meter from surface of unit |
45.0dBA |
|
Warranty |
2 Years |
|
Note |
***Features Price and Specifications are subject to change without notice. |
Features

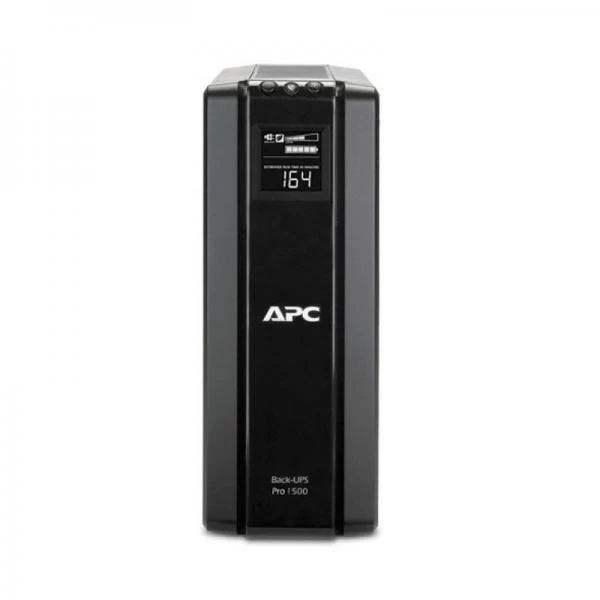

APC Power-Saving Back-UPS Pro 1500 230V India
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Battery replacement without tools
Enables fast battery replacement lowering Mean Time to Repair (MTTR).
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Building Wiring Fault Indicator
This LED informs users of potentially dangerous wiring problems in the wall circuit.
Cold-start capable
Provides temporary battery power when the utility power is out.
Dataline surge protection
Provides protection of connected equipment from power surges on the data lines.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Hot-swappable batteries
Ensures clean uninterrupted power to protected equipment while batteries are being replaced
Intelligent battery management
Maximizes battery performance life and reliability through intelligent precision charging.
LCD graphics display
Text and mimic diagrams that display modes of operation system parameters and alarms.
Power-saving outlets
Automatically cuts power to idle equipment to conserve electricity.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.
Serial connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
