Original price was: ₹13,000.00.₹7,000.00Current price is: ₹7,000.00.
Features:
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking it’s able to support the latest memory modules with most extreme memory performance!
High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices one of which can support PCI Express 4.0 M.2 SSD it is capable of performing twice the speed compared to previous 3rd generation giving a lightning fast data transferring experience.
USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.
Specifications:

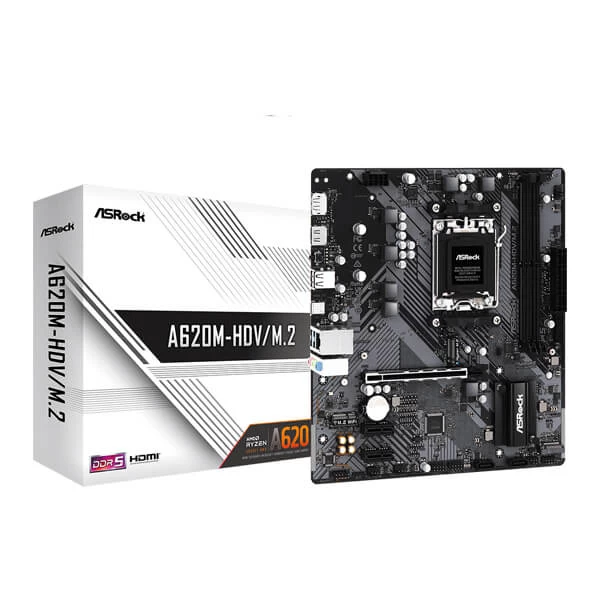

| Model Number | A620M-HDV/M.2 |
| Unique Feature | Superb Productivity – Dual Channel DDR5 Rock-Solid Durability – 4+1+1 Power Phase 50A Dr.MOS for VCore EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer EZ Troubleshooter – ASRock Post Status Checker |
| CPU | – Supports AMD Socket AM5 Ryzen? 7000 Series Processors |
| Chipset | – AMD A620 |
| Memory | – Dual Channel DDR5 Memory Technology – 2 x DDR5 DIMM Slots – Supports DDR5 non-ECC un-buffered memory up to 5600+(OC) – Max. capacity of system memory: 96GB – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| BIOS | – 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA? 2 graphics (Actual support may vary by CPU) – 1 x HDMI 2.1 TMDS/FRL 8G Compatible supports HDR HDCP 2.3 and max. resolution up to 4K 120Hz – 1 x DisplayPort 1.4 with DSC (compressed) supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Nahimic Audio |
| LAN | – Gigabit LAN 10/100/1000 Mb/s – Realtek RTL8111H |
| Slots |
CPU: – 15? Gold Contact in VGA PCIe Slot (PCIE1) |
| Storage | CPU: – 1 x Hyper M.2 Socket (M2_1 Key M) supports type 2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: – 1 x M.2 Socket (M2_2 Key M) supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes* – 2 x SATA3 6.0 Gb/s Connectors |
| RAID | – Supports RAID 0 and RAID 1 for SATA storage devices – Supports RAID 0 RAID 1 and RAID 10 for M.2 NVMe storage devices |
| USB | – 1 x USB 3.2 Gen1 Type-C (Rear) – 4 x USB 3.2 Gen1 Type-A (2 Rear 2 Front) – 6 x USB 2.0 (2 Rear 4 Front) |
| Connector | – 1 x Power LED and Speaker Header – 1 x CPU Fan Connector (4-pin) – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Rear Panel I/O | – 2 x Antenna Mounting Points – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x USB 3.2 Gen1 Type-C Port – 2 x USB 3.2 Gen1 Type-A Ports – 2 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x BIOS Flashback Button – HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software – ASRock Motherboard Utility (A-Tuning) – ASRock XFast LAN UEFI – ASRock Full HD UEFI – ASRock Auto Driver Installer – ASRock Instant Flash |
| Accessories | – 1 x User Manual – 1 x I/O Shield – 2 x SATA Data Cables – 3 x Screws for M.2 Sockets |
| Form Factor | – Micro ATX Form Factor: 9.6-in x 8.9-in 24.4 cm x 22.6 cm – 2oz Copper PCB |
| OS | – Microsoft? Windows? 10 64-bit / 11 64-bit |
| Certifications | – FCC CE – ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
| Note | *** Features Price Specifications are subject to change without notice. |
