Sale!

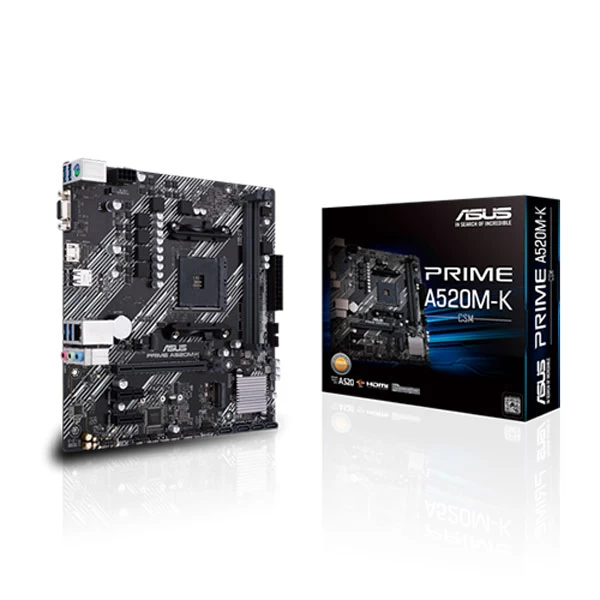

Asus Prime A520M-K/CSM Motherboard

SKU 2181a020e9b8 Categories , , , , ,

Original price was: ₹10,000.00.Current price is: ₹4,100.00.

Description

Asus Prime A520M-K/CSM motherboard is expertly designed with comprehensive cooling solutions and intelligent tuning options. Corporate Stable Model (CSM) is a commercial feature mainly for organizational use that provides stability and reliability.

Features:

ATX motherboard with M.2 support 1 Gb Ethernet HDMI/D-Sub SATA 6 Gbps USB 3.2 Gen 1 Type-A

  • AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • Comprehensive cooling: PCH heatsink and Fan Xpert
  • Ultrafast connectivity: M.2 support 1 Gb Ethernet USB 3.2 Gen 1 Type-A
  • 5X Protection III: Multiple hardware safeguards for all-around system protection

Specifications:

Model PRIME A520M-K/CSM
CPU AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
Chipset AMD A520
Memory

2 x DIMM Max. 64GB DDR4

4866(O.C)/4600(O.C)/4466(O.C.)/

4400(O.C)/4333(O.C.)/4266(O.C.)

/4200(O.C.)/4133(O.C.)/4000(O.C.)

/3866(O.C.)/3733(O.C.)/3600(O.C.)/

3466(O.C.)/3400(O.C.)/3333(O.C.)/

3200/3000/2933/2800/2666/2400/

2133 MHz Un-buffered Memory

Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Graphic 1 x D-Sub
1 x HDMI 2.1(4K@60HZ)
Expansion Slots

AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors

1 x PCIe 3.0 x16 (x16 mode)

AMD A520 Chipset

2 x PCIe 3.0 x1
Storage

Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors :

1 x M.2 Socket 3 with M Key Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

AMD A520 Chipset :

4 x SATA 6Gb/s port(s)
Support Raid 0 1 10
LAN Realtek RTL8111H 1Gb Ethernet
ASUS LANGuard
Audio

Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC

  • Supports : Jack-detection Multi-streaming Front Panel Jack-retasking up to 24-Bit/192kHz playback

Audio Feature :

  • Audio Shielding
    Dedicated audio PCB layers
USB Ports Rear USB Port ( Total 6 )

  • 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  • 2 x USB 2.0 port(s)(2 x Type-A)

Front USB Port ( Total 6 )

  • 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
  • 4 x USB 2.0 port(s)(4 x Type-A)
Software Features ASUS Exclusive Software
Armoury Crate
AI Suite 3
– Performance and Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert
– EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
ASUS Special Features ASUS 5X PROTECTION III
– ASUS DIGI+ VRM
– ASUS LANGuard
– ASUS Overvoltage Protection
– ASUS SafeSlot Core
– ASUS Stainless-Steel Back I/O
ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-Slot
ASUS Thermal Solution
– Aluminum heatsink design
Back I/O Ports
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x D-Sub
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 4 x USB 3.2 Gen 1 (blue) Type-A
  • 2 x USB 2.0
  • 3 x Audio jack(s)
Internal I/O Ports
  • 1 x CPU Fan connector(s)
  • 1 x Chassis Fan connector(s)
  • 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 3 with M key type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 1 x SPI TPM header
  • 4 x SATA 6Gb/s connector(s)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin EATX 12V Power connectors
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x Clear CMOS jumper(s)
  • 1 x System panel connector
  • 1 x COM port header
  • 1 x Speaker connector
Accessories User?s manual
1 x ACC Express Activation Key Card
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x M.2 SSD screw package(s)
BIOS 256 Mb Flash ROM UEFI AMI BIOS
Manageability WOL by PME PXE
Operating System Windows 10 64-bit
Form Factor mATX Form Factor
8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
Warranty 3 Years
Note *** Features Price Specifications are subject to change without notice.
  • PLATFORM
    AMD
  • SOCKET
    AM4
  • Chipset
    A520
  • SUPPORTED MEMORY TYPE
    DDR4
  • MAX MEMORY SUPPORT
    64 GB
  • FORM FACTOR
    M-ATX

Questions and Answers

Q. Is this going to support 4600g out of the box? 21/07/2024

A. Yes Sir.

Sachin Vishwakarma (Verified Buyer )

Q. Does this support Ryzen 3 3200g? 16/07/2024

A. updating the BIOS will be necessary to support the CPU

LONGDICHUM SANGTAM (Verified Buyer )

Q. Does it support ryzen 5 4500? 15/07/2024

A. Yes Sir.

Joydip Acharjee (Verified Buyer )
