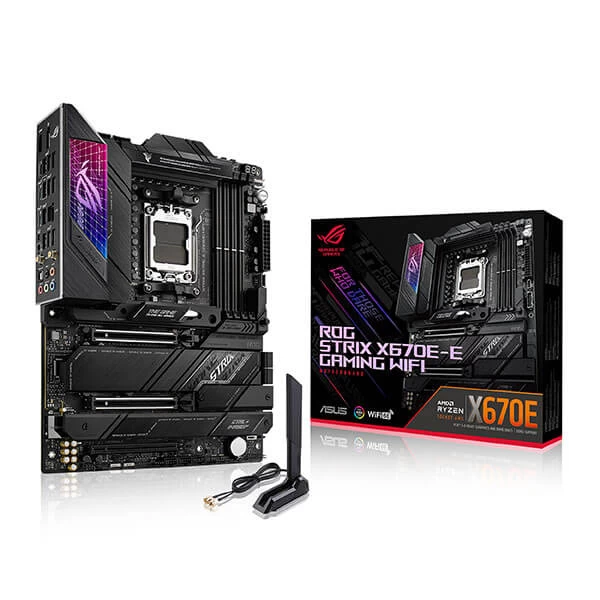

Asus ROG Strix X670E-E Gaming WIFI Motherboard

• 4 x DIMM Max. 128GB DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC Un-buffered Memory
• Dual Channel Memory Architecture
• Supports AMD EXTended Profiles for Overclocking (EXPO?)
• OptiMem II
• Supported memory types data rate(Speed) and number of DRAM module vary depending on the CPU and memory configuration for more information refer to www.asus.com for memory support list.
• Non-ECC Un-buffered DDR5 Memory supports On-Die ECC function

• 1 x DisplayPort
• 1 x HDMI? port
• *Supports max. 8K@60Hz as specified in DisplayPort 1.4.
• Supports Supports 4K@60Hz as specified in HDMI 2.1.

AMD Ryzen? 7000 Series Desktop Processors

• 2 x PCIe 5.0 x16 slots (supports x16 or x8/x4 modes)

AMD X670 Chipset

• 1 x PCIe 4.0 x16 slot (supports x4 mode)

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

• AMD Ryzen? 7000 Series Desktop Processors
• M.2_1 slot (Key M) type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M) type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

AMD X670 Chipset

• M.2_3 slot (Key M) type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M) type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10

• 1 x Intel? 2.5Gb Ethernet
• ASUS LANGuard

• Wi-Fi 6E
• 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band
• Bluetooth v5.2
• WiFi 6E 6GHz regulatory may vary between countries and function will be ready in Windows 11 or later.

Rear USB (Total 13 ports)

• 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C?)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

Front USB (Total 7 ports)

• 3 x USB 2.0 headers support additional 6 USB 2.0 ports

• “ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection Multi-streaming Front Panel Jack-retasking –
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
• Supports up to 32-Bit/384 kHz playback”

Audio Features

• Audio Shielding
• Savitech SV3H712 AMP
• Gold-plated audio jacks
• Rear optical S/PDIF out port
• Premium audio capacitors
• Audio cover
• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

• 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C?)
• 12 x USB 3.2 Gen 2 ports (10 x Type-A 2 x USB Type-C?)
• 1 x DisplayPort
• 1 x HDMI? port
• 1 x Wi-Fi Module
• 1 x Intel? I225-V 2.5Gb Ethernet port
• 5 x Fold Plated Audio jacks
• 1 x Optical S/PDIF out port
• 1 x Start button
• 1 x Front Panel Audio header (AAFP)
• 1 x BIOS FlashBack?  button
• 1 x Clear CMOS button

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 5 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connector
• Storage related
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C? )
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 3 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x CPU Over Voltage jumper
• 1 x Front Panel Audio header (AAFP)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal Sensor header
• 1 x Thunderbolt? header

Extreme Engine Digi+

• – 5K Black Metallic Capacitors

ASUS Q-Design

• M.2 Q-Latch
• PCIe Slot Q-Release
• Q-DIMM
• Q-Code
• Q-LED (CPU [red] DRAM [yellow] VGA [white] Boot Device [yellow green])
• Q-Slot

ASUS Thermal Solution

•  M.2 heatsink backplate
• M.2 heatsink
• VRM heatsink design
• Massive Bundled PCIe? 5.0 M.2 Heatsink

ASUS EZ DIY

• BIOS FlashBack? button
• BIOS FlashBack? LED
• Clear CMOS button
• ProCool II
• Pre-mounted I/O shield
• SafeSlot
• SafeDIMM

AURA Sync

• AURA RGB header
• Addressable Gen 2 headers

• GameFirst VI
• ROG CPU-Z
• Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
• Sonic Radar III
• DTS? Sound Unbound
• Anti-virus software

ASUS Exclusive Software

• Armoury Crate
• AIDA64 Extreme (60 days free trial)
• AURA Creator
• AURA Sync
• Fan Xpert 4 (with AI Cooling II)
• Power Saving
• Two-Way AI Noise Cancellatio
• AI Suite 3
• TPU
• DIGI+ VRM
• Turbo app
• PC Cleane
• MyAsus
• WinRAR

UEFI BIOS

• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• FlexKey
• Dynamic OC Switcher

• 2 x SATA 6Gb/s cables

Additional Cooling Kit

• 1 x Thermal pad for M.2

Miscellaneous

• 1 x ASUS Wi-Fi moving antennas
• 1 x Cable ties pack
• 1 x M.2 Q-Latch packages for M.2 backplate
• 1 x M.2 Q-Latch package
• 1 x ROG key chain
• 1 x ROG Strix sticker
• 1 x ROG Strix thank you card
• 2 x Rubber Packages for M.2
• 1 x Rubber Package for M.2 backplate
• 1 x Massive Bundled PCIe? 5.0 M.2 Heatsink

Documentation

• 1 x User guide

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
