Description
Product Description
Features:

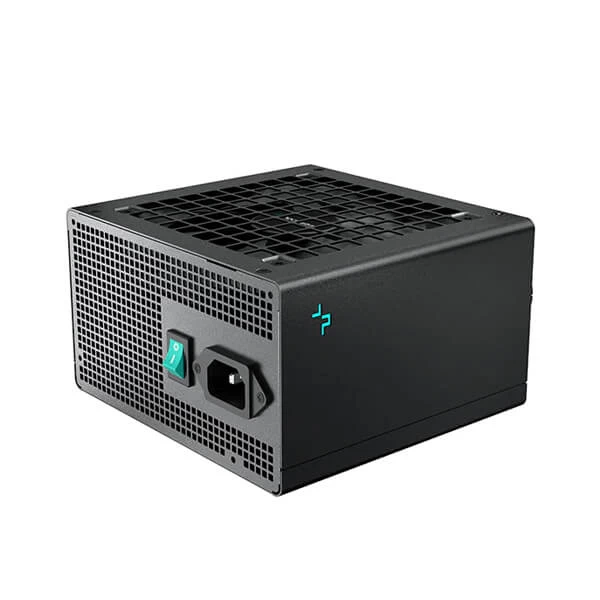

PK750D
The DeepCool PK-D series power supply offers reliable 80 PLUS Bronze efficiency to power computer system builds with stability and low noise performance.
Beautiful in Bronze
The PK-D series is certified 80 PLUS Bronze delivering up to 85% efficiency under typical load minimizing excess heat waste and lowering energy costs.
DC-DC Conversion
A highly efficient DC-DC board designed for the +3.3V and +5V rails help achieve tighter voltage regulation and improve system compatibility for next-generation components.
Tough and Durable
Designed to operate effortlessly in high temperatures up to 40øC and high altitudes up to 5000m while providing continuous stable power output.
ErP Lot 6 Compliant
Designed to be highly power efficient when in power standby mode to meet international ErP Lot 6 standards to lower overall energy consumption.
Specification:
Type | ATX12V V2.4 |
Product Dimensions | 150?140?86mm (W x L x H) |
80PLUS Certifications | Bronze |
Fan Size | 120mm |
Fan Bearing | Hypro Bearing |
Topology | Active PFC+DC to DC |
Capacitors | Taiwan capacitor |
Power Good Signal | 100-150ms |
Hold Up Time | ò16ms(80% Load) |
Efficiency | ò85% Under Typical Load(50% Loading) |
Protection | SCPOPPOTPOVPOCPUVP |
Operation Temperature | 0 – 40 øC |
Regulatory | CB/CE/FCC/CAN ICES-003(B)/NMB-003(B)/ TUV-RH/CCC/UKCA/EAC/RCM/BIS |
Erp Regulation | ErP 2013 |
MTBF | 100000 Hours |
Warranty | 5 Years |
Note | *** Features Price Specifications are subject to change without notice. |
Item specifics
-
Wattage
750 Watt -
Series
PK-D SERIES -
Certification
80+ BRONZE -
PCIe Connector (6+2)
4 -
SATA Connector
8 -
Peripheral (4-Pin)
4 -
Warranty
5 Years
