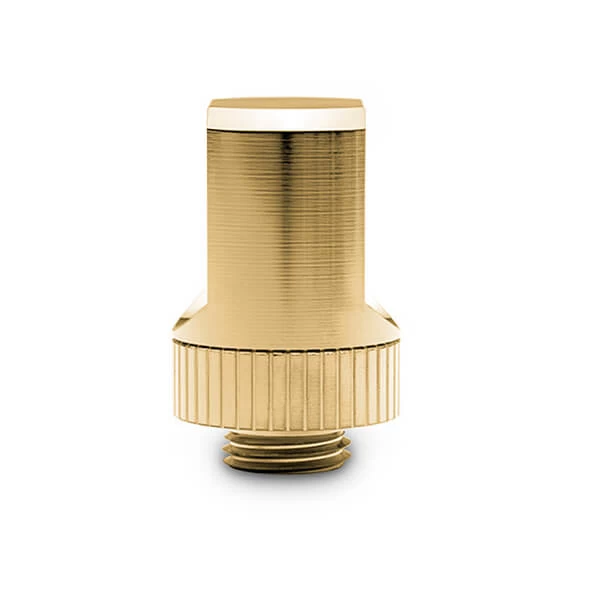

EK-Quantum Torque Rotary T – Gold

Details:

EK-Quantum Torque Rotary (Adapter Fitting) is a revolvable T adapter fitting with G1/4″ threads. In the form of a cut-off cylinder it is very sturdy and there are zero movements in the revolvable joint. With one male and two female threads it can be used for setting up drain ports 90-degree angles or parallel connections between components. This Quantum Line adapter is made out of CNC-machined brass and features a high-quality nickel plating followed by a second plating of real gold! The seal is made with quality EPDM O-rings. It is an extremely secure and sturdy piece that will last for many future builds.

The adapter allows for connection of fitting with G1/4″ threads to extend tubing possibilities in your water-cooled system allowing for easier bends and better accessibility.

EK-Quantum Torque series products received the prestigious iF Design Award. A robust and industrial aesthetic sets the Torque family apart by highlighting the precise manufacturing processes used to create them. In addition enthusiasts can add a unique color ring to give a personal accent to the fitting line. The Torque family of fittings offers a secure and modular system of connections between liquid cooling components and tubing within a PC. Quantum Torque series products cover angled adapters rotary and static extenders splitters G1/4″ plugs drain valves fittings and much more.

Technical specifications:

– Material: Brass

– Finish: Gold

– Threads:

* G1/4″ BSP; 4.5mm male thread length

* G1/4″ BSP; 6mm female thread length

– The outer diameter: 23mm

– Installed height: 28mm

– Sealed with high-quality NBR o-ring
