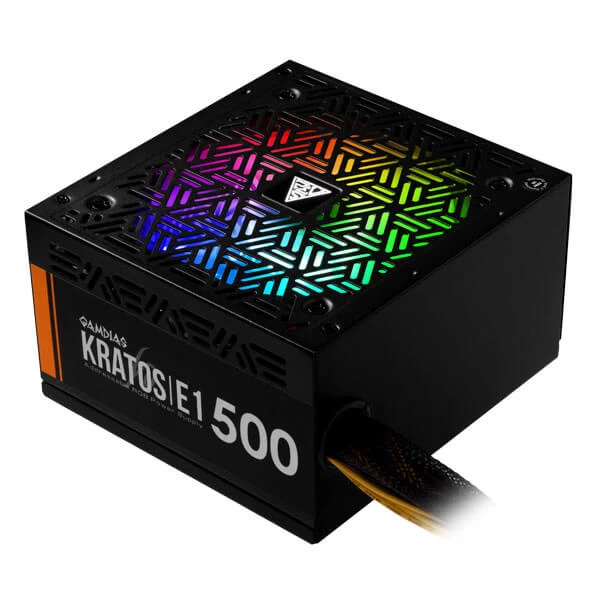

Gamdias Kratos E1-500 80 Plus SMPS

Product Description

Gamdias Kratos Series 80 Plus White Rated Power Supply With ARGB Lighting Active PFC 2x PCIe 6+2 Pin Connectors 5x Sata Connector 3x Peripheral ATA Which Includes 1x Floppy Connector.

Features:

• Meets 80% Efficiency
• Supports Motherboard Sync Functionality
• Neon-Flex RGB 30 Built-In Lighting Effects
• Addressable LEDs
• Support C6/C7 Power States
• Automatic Fan Speed Optimization

Specifications:

Model	KRATOS E1-500
Type	ATX12V v2.4
Efficiency	Meet 80% efficiency
Support MB Sync	5V 3-pin Addressable (Digital) RGB Header Only
Dimension (L x W x H)	140 x 150 x 86 mm
Support C6/C7 power state	Yes
AC Input	100-130V;220-240V / 3.5A-7.5A / 47-63Hz
DC Output	+3.3V / +5V / +12V / -12V / +5Vsb
Max. Output Current	15A / 15A / 32A / 0.3A / 2.5A
Max. Output Power	100W / 384W / 3.6W / 12.5W
Total Power	500W
Protection	OVP / UVP / OPP / SCP
Main Power	1 (20+4 Pin)
CPU	1 (4+4 Pin)
PCI-E	2 (6+2 Pin)
SATA	5 (5 Pin)
Molex	2 (4 Pin)
Floppy	1 (4 Pin)
Modular	Non Modular
Lighting Effect	30 Neon-Flex RGB
Silent Mode	No
DC to DC	No
Warranty	3 Years
Note	*** Features Price Specifications are subject to change without notice.

Item specifics

• Wattage
  500 Watt
• Series
  KRATOS
• PCIe Connector (6+2)
  2
• SATA Connector
  5
• Peripheral (4-Pin)
  3
• Warranty
  3 Years
