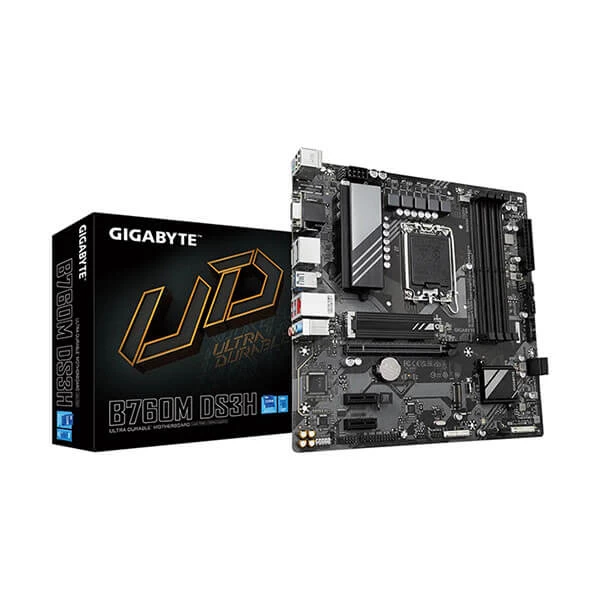

Gigabyte B760M DS3H Motherboard

• LGA1700 socket: Support for the 13th and 12th Generation Intel? Core? Pentium? Gold and Celeron? Processors
• L3 cache varies with CPU

• Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
• 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

• 1 x D-Sub port supporting a maximum resolution of 1920×1200@60 Hz km
• 1 x HDMI port supporting a maximum resolution of 4096×2160@60 Hz  Support for HDMI 2.0 version and HDCP 2.3.
• 1 x DisplayPort supporting a maximum resolution of 4096×2304@60 Hz  Support for DisplayPort 1.2 version and HDCP 2.3
• 1 x DisplayPort supporting a maximum resolution of 4096×2304@60 Hz  Support for DisplayPort 1.2 version.

• Realtek? Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel      You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio access the audio software for audio settings.
• Support for S/PDIF Out

CPU:

1 x PCI Express x16 slot supporting PCIe 4.0 and running at x16

Chipset:

2 x PCI Express x1 slots supporting PCIe 3.0 and running at x1

CPU:

1 x M.2 connector (Socket 3 M key type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1 x M.2 connector (Socket 3 M key type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors

RAID 0 RAID 1 RAID 5 and RAID 10 support for SATA storage devices

Chipset:

1 x USB Type-C? port on the back panel with USB 3.2 Gen 2 support
5 x USB 3.2 Gen 1 ports (3 ports on the back panel 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel

Chipset+2 USB 2.0 Hubs:

4 x USB 2.0/1.1 ports available through the internal USB headers

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 3 x system fan headers
• 1 x addressable LED strip header
• 1 x RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x serial port header
• 1 x parallel port header
• 1 x S/PDIF Out header
• 1 x Q-Flash Plus button
• 1 x reset jumper
• 1 x Clear CMOS jumper

• 2 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 1 x D-Sub port
• 1 x HDMI port
• 2 x DisplayPorts
• 3 x USB 3.2 Gen 1 ports
• 1 x USB Type-C? port with USB 3.2 Gen 2 support
• 1 x RJ-45 port
• 3 x audio jacks

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a DMI 2.7 WfM 2.0 SM BIOS 2.7 ACPI 5.0

• Support for GIGABYTE Control Center (GCC)  Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• Support for Q-Flash
• Support for Q-Flash Plus

• Norton? Internet Security (OEM version)
• LAN bandwidth management software

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit
