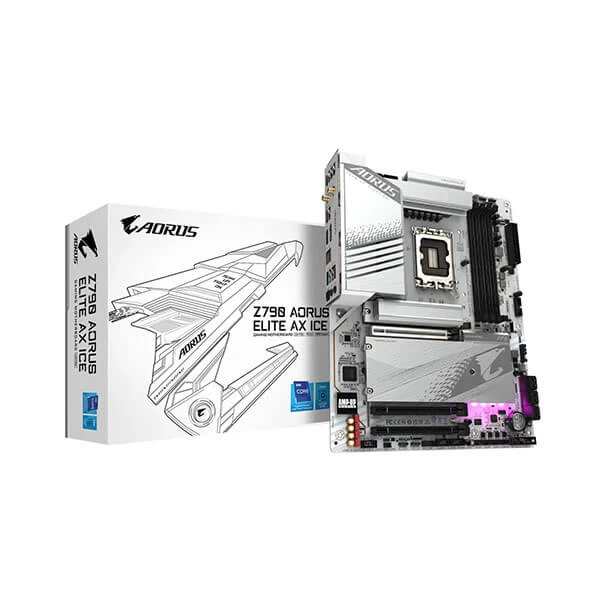

Gigabyte Z790 Aorus Elite AX ICE DDR5 Motherboard

• LGA1700 socket: Support for the 14th 13th and 12th Generation Intel? Core? Pentium? Gold and Celeron? Processors
• L3 cache varies with CPU

(Please refer “CPU Support List” for more information.)

• Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
• 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules  (The CPU and memory configuration may affect the supported memory types data rate (speed) and number of DRAM modules please refer to “Memory Support List” for more information.)

Integrated Graphics Processor-Intel? HD Graphics support:

• 1 x HDMI port supporting a maximum resolution of 4096×2160@60 Hz
  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support native HDMI 2.1 TMDS compatible ports.
• 1 x DisplayPort supporting a maximum resolution of 4096×2304@60
  * Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

• Realtek? Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel              * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio access the audio software for audio settings.
• Support for S/PDIF Out

Intel? Wi-Fi 6E AX211 (PCB rev. 1.0)

• WIFI a b g n ac ax supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Realtek? Wi-Fi 6E RTL8852CE (PCB rev. 1.1)

• WIFI a b g n ac ax supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

* Actual data rate may vary depending on environment and equipment.

CPU:

• 1 x PCI Express x16 slot supporting PCIe 5.0 and running at x16 (PCIEX16)
  * For optimum performance if only one PCI Express graphics card is to be installed be sure to install it in the PCIEX16 slot.

Chipset:

• 1 x PCI Express x16 slot supporting PCIe 4.0 and running at x4 (PCIEX4_1)
• 1 x PCI Express x16 slot supporting PCIe 3.0 and running at x4 (PCIEX4_2)

CPU:

• 1 x M.2 connector (Socket 3 M key type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

• 2 x M.2 connectors (Socket 3 M key type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB M2Q_SB)
• 1 x M.2 connector (Socket 3 M key type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
• 6 x SATA 6Gb/s connectors

RAID 0 RAID 1 RAID 5 and RAID 10 support for NVMe SSD storage devices

RAID 0 RAID 1 RAID 5 and RAID 10 support for SATA storage devices
* Refer to “2-8 Internal Connectors” for the installation notices for the M.2 and SATA connectors.

Chipset:

• 1 x USB Type-C? port on the back panel with USB 3.2 Gen 2×2 support
• 1 x USB Type-C? port with USB 3.2 Gen 2 support available through the internal USB header
• 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• 5 x USB 3.2 Gen 1 ports (3 ports on the back panel 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

• 8 x USB 2.0/1.1 ports (4 ports on the back panel 4 ports available through the internal USB headers)

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 3 x system fan headers
• 1 x system fan/water cooling pump header
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 4 x M.2 Socket 3 connectors
• 6 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C? header with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 2 x Thunderbolt? add-in card connectors
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x reset button
• 1 x Q-Flash Plus button
• 1 x Clear CMOS button
• 1 x reset jumper
• 1 x Clear CMOS jumper

• 1 x USB Type-C port with USB 3.2 Gen 2×2 support
• 2 x USB 3.2 Gen 2 Type-A ports (red)
• 3 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 2 x SMA antenna connectors (2T2R)
• 1 x HDMI 2.0 port
• 1 x DisplayPort
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 2 x audio jacks

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control                 * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a DMI 2.7 WfM 2.0 SM BIOS 2.7 ACPI 5.0

• Support for GIGABYTE Control Center (GCC)                       * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup

• Norton? Internet Security (OEM version)
• LAN bandwidth management software

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit
