| Model |

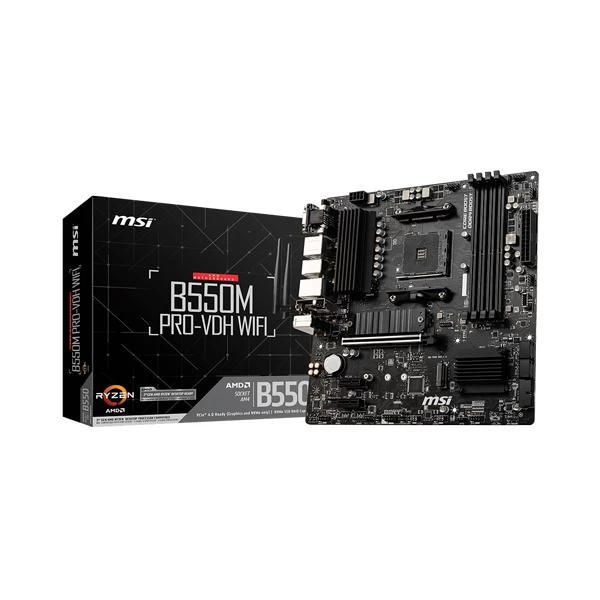

B550M PRO-VDH WIFI |
| CPU |
Supports AMD Ryzen? 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen? 5 3400G & Ryzen? 3 3200G) and AMD Ryzen? 4000 G-Series desktop processors |
| Chipset |
AMD B550 Chipset |
| Memory |
- 4x DDR4 memory slots support up to 128GB
- Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
- 1DPC 1R max speed 4400 MHZ
- 1DPC 2R max speed 3733 MHZ
- 2DPC 1R max speed 3866 MHZ
- 2DPC 2R max speed 3466 MHZ
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory
- Supports un-buffered memory
|
| Expansion Slot |
- 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
- 2x PCIe 3.0 x1 slots
|
| Onboard Graphics |
- 1x VGA port supports resolution of 2048×1536 @50Hz 2048×1280 @60Hz 1920×1200 @60Hz
- 1x DisplayPort supports a maximum resolution of 4096×2160 @60Hz
- 1x HDMI? 2.1 port supports a maximum resolution of 4096×2160 @60Hz Support HDCP 1.4 & 2.3
- Maximum shared memory of 16 GB
|
| Storage |
AMD B550 Chipset
- 4x SATA 6Gb/s ports
- 2x M.2 slots (Key M)
- M2_1 slot (from AMD Processor)
- Supports PCIe 4.0/ 3.0 x4 1
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- M2_2 slot (from AMD B550 chipset)
- Supports PCIe 3.0×4
- Supports 2242/ 2260/ 2280 storage devices
|
| RAID |
- Supports RAID 0 RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
|
| USB |
AMD B550 Chipset
- 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
- 6x USB 2.0 ports (2 Type-A ports on the back panel 4 ports through the internal USB 2.0 connectors)
AMD Processor
- 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
|
| Audio |
Realtek? ALC892/ALC897 Codec
- 7.1-Channel High Definition Audio
|
| LAN |
1x Realtek? 8111HN Gigabit LAN controller |
| Wireless LAN & Bluetooth |
Wi-Fi AC
- Supports Wi-Fi 802.11 a/b/g/n/ac dual band (2.4GHz 5GHz) up to 433 Mbps speed.
- Supports Dual Mode Bluetooth 2.12.1+EDR3.04.0BLE4.2
|
| Internal connectors |
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 2x M.2 slots (M-Key)
- 1x USB 3.2 Gen 1 5Gbps Type-C port
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional
- 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 3x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Serial port connector
- 1x Chassis Intrusion connector
- 2x 4-pin RGB LED connectors
- 2x 3-pin RAINBOW LED connectors
- 1xTPM module connector
- 1x Clear CMOS jumper
|
| Back panel ports |
- VGA
- USB 3.2 Gen 1 5Gbps Type-A
- Keyboard / Mouse
- LAN
- Flash BIOS Button
- DisplayPort
- HDMI?
- USB 2.0
- USB 3.2 Gen 1 5Gbps Type-A
- Wi-Fi Antenna connectors
- 3x Audio jacks
|
| Dimensions |
Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
|
| MOUNTING |
8 mounting holes |
| Warranty |
3 Years |
| Note |
*** Features Price Specifications are subject to change without notice. |
