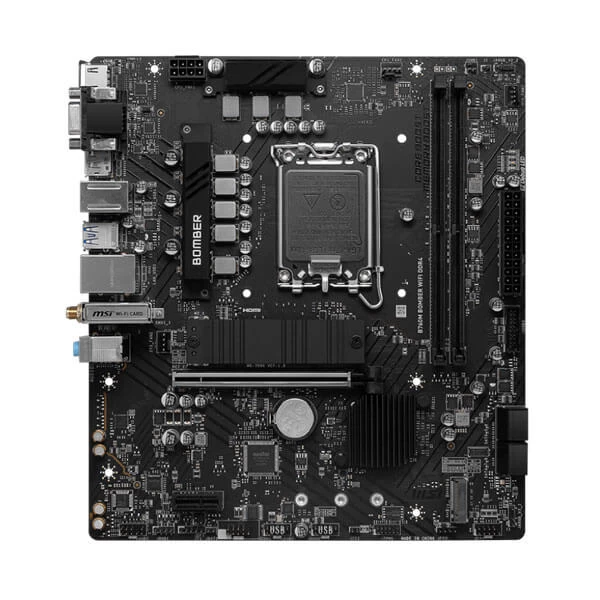

MSI B760M Bomber WIFI DDR4 Motherboard

Description

MSI B760M Bomber WIFI DDR4 Motherboard Support Intel Core 14th/ 13th/ 12th Gen Processors Intel Pentium Gold and Celeron Processors for LGA 1700 socket. Supports DDR4 Memory Dual Channel DDR4-4800+MHz (OC)

Features:

B760M BOMBER WIFI DDR4

Support Intel? Core? 14th/ 13th/ 12th Gen Processors Intel? Pentium? Gold and Celeron? Processors for LGA 1700 socket
Supports DDR4 Memory Dual Channel DDR4-4800+MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance stability and compatibility
Lightning Fast Experience: PCIe 4.0 Lightning Gen4 x4 M.2 with M.2 Shield Frozr
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure stable and fast network connection
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance stability and strength

Specifications:

Model Number	B760M-BOMBER-WIFI-DDR4
CHIPSET	INTEL B760
CPU	Support Intel? Core? 14th/ 13th/ 12th Gen Processors Intel? Pentium? Gold and Celeron? Processors LGA 1700
MEMORY	2x DDR4 Maximum Memory Capacity 64GB 2x DDR4 Maximum Memory Capacity 64GBMemory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)Max. overclocking frequency:? 1DPC 1R Max speed up to 4800+ MHz? 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel modeSupports Dnon-ECC un-buffered memorySupports Intel? Extreme Memory Profile (XMP)
AUDIO	Realtek? ALC897 Codec Realtek? ALC897 Codec7.1-Channel High Definition Audio
STORAGE	2x M.2 (Qty) 2x M.2 (Qty)M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 supports 2280/2260/2242 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode supports 2280/2260/2242 devices4x SATA 6G (Qty)
LAN	Realtek? RTL8125B 2.5Gbps LAN
ONBOARD GRAPHICS	1x HDMI? Support HDMI? 2.1 with HDR maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4 maximum resolution of 4K 60Hz* 1x D-Sub Support VGA maximum resolution of 2048×1536 50Hz 2048×1280 60Hz 1920×1200 60Hz
SLOT	1x PCI-E x16 slot (Qty) 1x PCI-E x16 slot (Qty)1x PCI-E x1 slot (Qty)PCI_E1 Gen PCIe 4.0 supports up to (From CPU)PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
RAID	Supports RAID 0 RAID 1 RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 2x USB 2.0 (Rear)4x USB 2.0 (Front)4x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)
WIRELESS LAN & BLUETOOTH	Intel? Wi-Fi 6E Intel? Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth? 5.3 FIPS FISMA
INTERNAL IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	HDMI? VGA DisplayPort Keyboard / Mouse 2.5G LAN Wi-Fi / Bluetooth Audio Connectors USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A)
OPERATING SYSTEM	Support for Windows? 11 64-bit Windows? 10 64-bit
PCB INFO	mATX 220mmx243.84mm
Warranty	3 Years
Note	*** Features Price Specifications are subject to change without notice.

PLATFORM
INTEL
SOCKET
LGA1700
Chipset
B760
SUPPORTED MEMORY TYPE
DDR4
MAX MEMORY SUPPORT
64 GB
FORM FACTOR
M-ATX

MSI B760M Bomber WIFI DDR4 Motherboard

Description

Product Description

MSI B760M Bomber WIFI DDR4 Motherboard Support Intel Core 14th/ 13th/ 12th Gen Processors Intel Pentium Gold and Celeron Processors for LGA 1700 socket. Supports DDR4 Memory Dual Channel DDR4-4800+MHz (OC)
