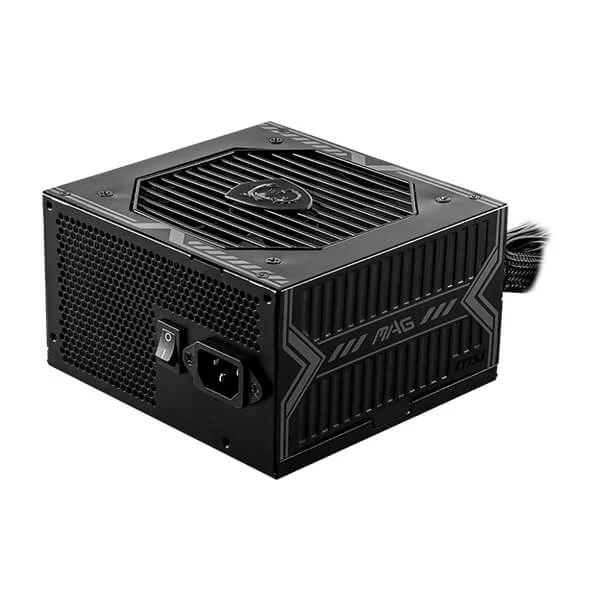

MSI MAG A750BN PCIE5 750 Watt 80 Plus Bronze SMPS

Product Description

MSI MAG A750BN PCIE5 SMPS is a 750 Watt 80 Plus Bronze Certification Power Supply. This PSU has Active PFC Design Industrial level protection with OVP OCP SCP OPP OTP 16-pin PCIe 5.0 Connector It supports RTX 40 series Graphics Cards

Features:

• PCIe 5.0 Ready (300W)
• 120mm Fan
• DC to DC power Design
• Active PFC Design
• Industrial level protection with OVP OCP SCP OPP OTP


Specification:

Model	MAG A750BN PCIE5
Efficiency Rating	80 PLUS Bronze (up to 85%)
Modular	No
Fan Size	120 mm
Fan Bearing	Sleeve Bearing
Dimensions (DxWxH)	140mm x 150mm x 86mm / 5.51 x 5.9 x 3.38 inches
PFC Type	Active PFC
Input Voltage Range	100-240~
Power Watt	750W
Input Frequency Range	50~60Hz
Protection	OCP OVP OPP OTP SCP
ATX (24 pin)	1
EPS (4+4 pin)	2
PCI-E 5.0 (16 pin)	1(300W)
PCI-E (6+2 pin)	2
SATA (15 pin)	5
MOLEX (4 pin)	2
FDD (4 pin)	1
Warranty	5 Years
Note	*** Image use for reference only *** Features Price Specifications are subject to change without notice.

Item specifics

• Wattage
  750 Watt
• Series
  MAG SERIES
• Certification
  80+ BRONZE
• Modular
  NON MODULAR
• PCIe Connector (6+2)
  2
• SATA Connector
  5
• Peripheral (4-Pin)
  2
• Warranty
  5 Years
