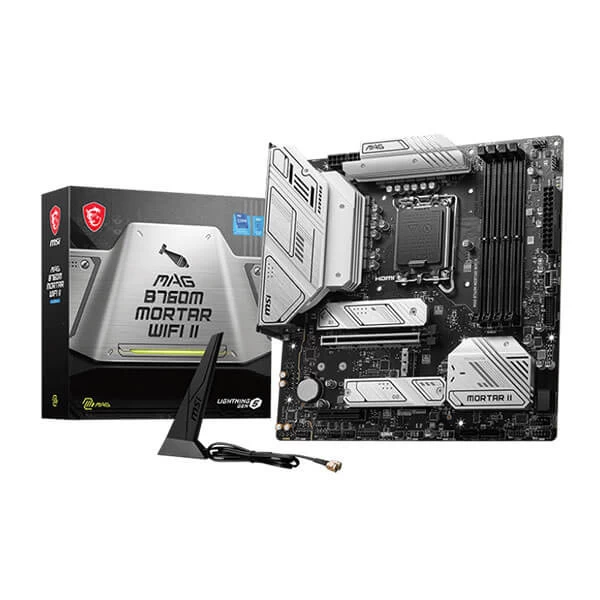

MSI MAG B760M Mortar WIFI II Motherboard

SKU 3fb9fbce1787 Categories , , , , ,

Original price was: ₹33,999.00.Current price is: ₹18,590.00.

Description

MSI MAG B760M Mortar WIFI II Motherboard supports DDR5 Memory up to 7800+(OC) MHz and Supports Intel Core Next-gen / 13th Gen / 12th Gen Pentium Gold and Celeron processors for LGA 1700 socket

Features:

  • Support Intel? Core? 14th/ 13th/ 12th Gen Processors Intel? Pentium? Gold and Celeron? Processors for LGA 1700 socket
  • Supports DDR5 Memory up to 7800+(OC) MHz
  • Enhanced Power Design: 12+1+1 Duet Rail Power System dual 8-pin CPU power connectors Core Boost Memory Boost
  • Lightning Fast Game experience: PCIe 5.0 slot Lightning Gen 4 x4 M.2 USB 3.2 Gen 2 x2
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • Audio Boost: Reward your ears with studio grade sound
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

Specification:

Model MAG B760M MORTAR WIFI II
Chipset INTEL B760
CPU SUPPORT

Support Intel? Core? 14th/ 13th/ 12th Gen Processors Intel? Pentium? Gold and Celeron? Processors
LGA1700
Memory

4x DDR5 Maximum Memory Capacity 192GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:
? 1DPC 1R Max speed up to 7800+ MHz
? 1DPC 2R Max speed up to 6600+ MHz
? 2DPC 1R Max speed up to 6400+ MHz
? 2DPC 2R Max speed up to 5600+ MHz

Supports Dual-Channel mode
Supports non-ECC un-buffered memory
Supports Intel? Extreme Memory Profile
Onboard Graphics
  • 1x HDMI?

Support HDMITM 2.1 with HDR maximum resolution of 4K 60Hz*

  • 1x DisplayPort

Support DP 1.4 maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 1x PCI-E x16 slot
Supports x16/x4
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
Storage 3x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode supports 2280 devices
4x SATA 6G
RAID Supports RAID 0 RAID 1 RAID 5 and RAID 10 for SATA storage devices
USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 3.2 Gen1 Type A (Front)
  • 3x USB 3.2 Gen2 Type A (Rear)
  • 1x USB 3.2 Gen2 Type C (Front)
  • 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Realtek? 2.5Gbps LAN
WIRELESS / BLUETOOTH

Intel? Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth? 5.3 FIPS FISMA
* Wi-Fi 6E 6GHz may depend on every country?s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio Realtek? ALC897 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Internal I/O
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 4x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Tuning Controller connector(JDASH)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports
  • 1x USB 3.2 Gen2 Type C ports
  • 1x USB4 card connector (JTBT_U4_1 supports RTD3)
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS
  • DisplayPort 1.4
  • USB 3.2 Gen 2 10Gbps Type-A
  • 2.5G LAN Port
  • Wi-Fi / Bluetooth
  • HD Audio Connectors
  • USB 2.0
  • HDMI? 2.1 Port
  • USB 3.2 Gen 2×2 20Gbps Type-C
  • USB 3.2 Gen 2 10Gbps Type-A
OPERATING SYSTEM Support for Windows? 11 64-bit Windows? 10 64-bit
PCB Dimension (W ? L) mATX
243.84mmx243.84mm
Warranty 3 Years
Note *** Features Price Specifications are subject to change without notice.
  • PLATFORM
    INTEL
  • SOCKET
    LGA1700
  • Chipset
    B760
  • SUPPORTED MEMORY TYPE
    DDR5
  • MAX MEMORY SUPPORT
    192 GB
  • FORM FACTOR
    M-ATX
