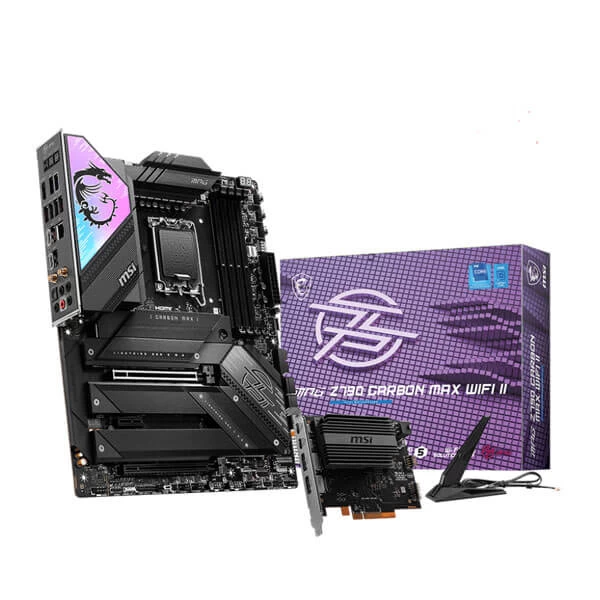

MSI MPG Z790 Carbon Max WIFI II Motherboard

SKU 39cc3d8034e4 Categories , , , , ,

Original price was: ₹96,999.00.Current price is: ₹55,100.00.

Description

MSI MPG Z790 Carbon Max WIFI II Motherboard support Intel Core 14th/ 13th/ 12th Gen Processors Intel Pentium Gold and Celeron Processors for LGA 1700 socket and PCIe 5.0 slot Lightning Gen 5 x4 M.2 USB 3.2 Gen 2×2

Features:

  • Support Intel? Core? 14th/ 13th/ 12th Gen Processors Intel? Pentium? Gold and Celeron? Processors for LGA 1700 socket
  • Supports DDR5 Memory up to 7800+(OC) MHz
  • Lightning Fast Game experience: PCIe 5.0 slot Lightning Gen 5 x4 M.2 USB 3.2 Gen 2×2
  • Enhanced Power Design: Direct 19+1+1 phases power Core Boost Memory Boost
  • Premium Thermal Solution: Enlarged heatsink with heat-pipe MOSFET thermal pads rated for 7W/mk additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • 5G LAN and Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure stable and fast network connection
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
    High Quality PCB: 8-layer PCB made by server grade level material
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation

MPG Z790 CARBON MAX WIFI II TITLE
MPG Z790 CARBON MAX WIFI II employs a carbon black color scheme and reflection decoration over Mysticlight RGB lighting to show a different identity. It is also powerful inside by featuring Wi-Fi 7 solution optimized DDR5 circuit and the latest PCIe 5.0 M.2 with Screwless M.2 Shield Frozr making this motherboard one of the best Z790 ATX motherboards for Intel? 14th Gen and 13th Gen Core processors.

BE AHEAD POP YOUR STYLE
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style the MPG series defines the future of gaming fashion.

TOOL-FREE M.2 INSTALLATION
Industrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation.

Specifications:

 Model Number  MPG-Z790-CARBON-MAX-WIFI-II
 CHIPSET    INTEL Z790
 CPU   Support Intel? Core? 14th/ 13th/ 12th Gen Processors Intel? Pentium? Gold and Celeron? Processors
LGA 1700
 MEMORY  4x DDR5 UDIMM Maximum Memory Capacity 256GB

Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
? 1DPC 1R Max speed up to 7800+ MHz
? 1DPC 2R Max speed up to 6600+ MHz
? 2DPC 1R Max speed up to 6400+ MHz
? 2DPC 2R Max speed up to 5600+ MHz

Supports Intel? XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC un-buffered memory
 AUDIO   Realtek? ALC4080 Codec Realtek? ALC4080 Codec7.1-Channel USB High Performance AudioSupports up to 32-Bit/384 kHz playback on front panel
 STORAGE    5x M.2 5x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 supports 2280/2260 devicesM.2_2 Source (From CPU) supports up to PCIe 5.0 x4 supports 22110/2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 supports 2280/2260 devicesM.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 supports 2280/2260 devicesM.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode supports 2280/2260 devices6x SATA 6G
 LAN    Realtek 5Gbps LAN
 ONBOARD GRAPHICS    1x HDMI? 1x HDMI?Support HDMI? 2.1 maximum resolution of 4K 60Hz
 SLOT    2x PCI-E x16 slot 2x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
 RAID  Supports RAID 0 RAID 1 RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 RAID 1 RAID 5 and RAID 10 for M.2 NVMe storage devices
 USB    4x USB 2.0 (Front) 4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)6x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)1x USB 20Gbps Type C (Rear)1x USB 20Gbps Type C (Front)
 WIRELESS LAN & BLUETOOTH   Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth? 5.4 MLO 4KQAM
 INTERNAL IO    1x Power Connector(ATX_PWR) 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan5x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x TBT connector (JTBT supports RTD3)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)1x ARGB+FAN Header (JAF_1)1x USB4 card connector (JTBT_U4_1 supports RTD3)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 20Gbps Type C ports
 LED FEATURE    4x EZ Debug LED 4x EZ Debug LED1x 2-Digit Debug Code LED1x EZ LED Control switch
 BACK PANEL PORTS   Flash BIOS / Clear CMOS
USB 5 Gbps (Type-A)
USB 10Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
Smart Button
HDMI?
USB 10Gbps (Type-C)
USB 20Gbps (Type-C)
Optical S/PDIF Out
 OPERATING SYSTEM    Support for Windows? 11 64-bit Windows? 10 64-bit
 PCB INFO    ATX243.84mmx304.8mm
 Warranty  3 Years
Note *** Features Price Specifications are subject to change without notice.
  • PLATFORM
    INTEL
  • SOCKET
    LGA1700
  • Chipset
    Z790
  • SUPPORTED MEMORY TYPE
    DDR5
  • MAX MEMORY SUPPORT
    256 GB
  • FORM FACTOR
    ATX
