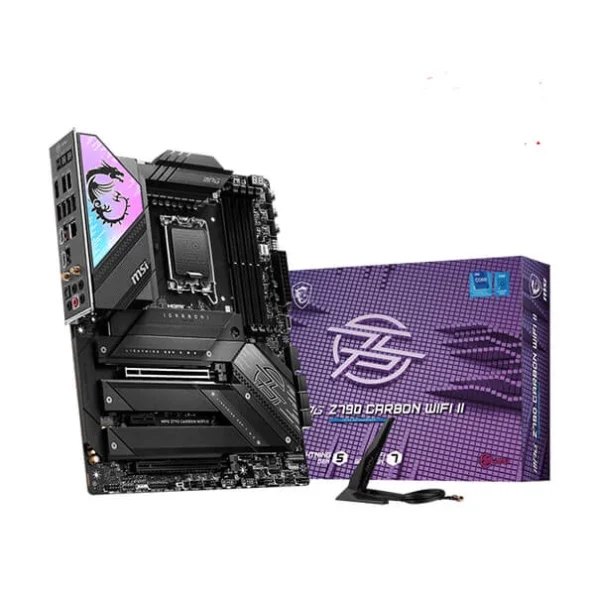

MSI MPG Z790 Carbon WIFI II DDR5 Motherboard

SKU cd2baee1da5d Categories , , , , ,

Original price was: ₹84,999.00.Current price is: ₹49,300.00.

Description

MSI MPG Z790 Carbon WIFI II ATX Motherboard It?s Support Intel Core 14th/13th/12th Gen Processors for LGA1700 Socket with 4x DDR5 UDIMM Slot PCIe 5.0 Slot 2.5G LAN and Wi-Fi 7 Solution This Motherboard ideal for Your High Performance System

Features:

  • Support Intel Core? 14th/ 13th/ 12th Gen Processors Intel? Pentium? Gold and Celeron Processors for LGA 1700 socket
  • Supports DDR5 Memory up to 7800+(OC) MHz
  • Lightning Fast Game experience: PCIe 5.0 slot Lightning Gen 5 x4 M.2 USB 3.2 Gen 2×2
  • Enhanced Power Design: Direct 19+1+1 phases power Core Boost Memory Boost
  • Premium Thermal Solution: Enlarged heatsink with heat-pipe MOSFET thermal pads rated for 7W/mk additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • 2.5G LAN and Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure stable and fast network connection
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 8-layer PCB made by server grade level material
    Pre-installed I/O Shield: Better EMI protection and more convenience for installation

Specification:

Model MPG Z790 CARBON WIFI II
Chipset INTEL Z790
CPU Support Intel? Core? 14th/ 13th/ 12th Gen Processors Intel? Pentium? Gold and Celeron? Processors
LGA 1700
Memory

4x DDR5 UDIMM Maximum Memory Capacity 256GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:

  • 1DPC 1R Max speed up to 7800+ MHz
  • 1DPC 2R Max speed up to 6600+ MHz
  • 2DPC 1R Max speed up to 6400+ MHz
  • 2DPC 2R Max speed up to 5600+ MHz

Supports Intel? XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC un-buffered memory
Onboard Graphics 1x HDMI?
Support HDMI? 2.1 maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage 5x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 supports 2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode supports 2280/2260 devices
6x SATA 6G
*PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_2 slot.
RAID Supports RAID 0 RAID 1 RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 RAID 1 RAID 5 and RAID 10 for M.2 NVMe storage devices
* SATA_A1~A2 do not support RAID function.
USB
  • 4x USB 2.0 (Front)
  • 2x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
  • 6x USB 3.2 Gen2 Type A (Rear)
  • 1x USB 3.2 Gen2 Type C (Rear)
  • 1x USB 3.2 Gen2x2 Type C (Rear)
  • 1x USB 3.2 Gen2x2 Type C (Front)
LAN Intel? 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH

Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth? 5.4** MLO 4KQAM

* 6GHz band support may depend on every country?s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
Audio Realtek? ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Internal IO
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 5x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x TBT connector (JTBT supports RTD3)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports
  • 1x USB 3.2 Gen 2×2 Type C ports
  • 1x ARGB+FAN Header (JAF_1)
  • 1x USB4 card connector (JTBT_U4_1 supports RTD3)
LED FEATURE
  • 4x EZ Debug LED
  • 1x 2-Digit Debug Code LED
  • 1x EZ LED Control switch
BACK PANEL PORTS
  • Flash BIOS / Clear CMOS
  • USB 3.2 Gen 1 5 Gbps (Type-A)
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • 2.5G LAN
  • Wi-Fi / Bluetooth
  • Audio Connectors
  • Smart Button
  • HDMI?
  • USB 3.2 Gen 2 10Gbps (Type-C)
  • USB 3.2 Gen 2×2 20Gbps (Type-C)
  • Optical S/PDIF Out
OPERATING SYSTEM Support for Windows? 11 64-bit Windows? 10 64-bit
PCB Info ATX
243.84mmx304.8mm
Warranty 3 Years
Note

*** Image use for reference only

*** Features Price Specifications are subject to change without notice.
  • PLATFORM
    INTEL
  • SOCKET
    LGA1700
  • Chipset
    Z790
  • SUPPORTED MEMORY TYPE
    DDR5
  • MAX MEMORY SUPPORT
    256 GB
  • FORM FACTOR
    ATX
