Sale!

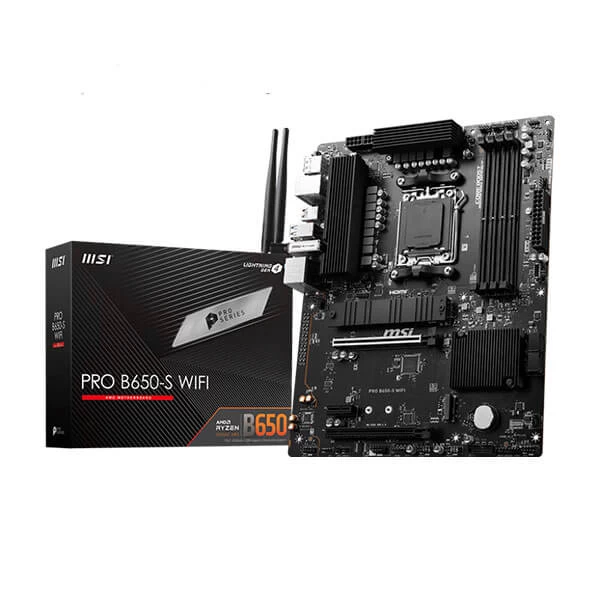

MSI Pro B650-S WIFI Motherboard

SKU 14fce40a59a9 Categories , , , , ,

Original price was: ₹25,999.00.Current price is: ₹14,770.00.

Description

MSI PRO series motherboards support all the latest storage standards which allows users to connect any ultra-fast storage device. Start games faster load levels faster and have a real advantage over your enemies.

Features:

  • Supports AMD Ryzen? 7000 Series Desktop Processors
  • Supports DDR5 Memory Dual Channel DDR5 7200+MHz (OC)
  • Enhanced Power Design: 12+2 Duet Rail Power System with P-PAK dual 8-pin CPU power connectors Core Boost Memory Boost
  • Premium Thermal Solution: MOSFET thermal pads rated for 7W/mK and M.2 Shield Frozr are built for high performance system and non-stop work
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Lightning Fast Game experience: PCIe 4.0 slots Lightning Gen 4 x4 M.2 with M.2 Shield Frozr USB 3.2 Gen 2×2
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

Specification:

Model PRO B650-S WIFI
Chipset AMD B650
CPU SUPPORT Supports AMD Ryzen? 7000 Series Desktop Processors
Socket AM5
Memory

4x DDR5 Maximum Memory Capacity 192GB
Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:
? 1DPC 1R Max speed up to 7200+ MHz
? 1DPC 2R Max speed up to 6000+ MHz
? 2DPC 1R Max speed up to 6000+ MHz
? 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC un-buffered memory
Supports AMD EXPO
Onboard Graphics
  • 1x HDMI?

Support HDMITM 2.1 maximum resolution of 4K 60Hz*

  • 1x DisplayPort

Supports DP1.4 maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Multi-GPU AMD MULTI-GPU Support
Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 supports 2280/2260 devices
4x SATA 6G
RAID Supports RAID 0 and RAID 1 for SATA storage devices*
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB 4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Realtek? 8125BG 2.5G LAN
WIRELESS / BLUETOOTH

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz 40MHz 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth? 5.3**

* Wi-Fi 6E 6GHz may depend on every country?s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio Realtek? ALC897 Codec
7.1-Channel High Definition Audio
Internal I/O
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 4x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x Tuning Controller connector(JDASH)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 2x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports
  • 1x USB 3.2 Gen2 Type C ports
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS
  • DisplayPort
  • 2.5G LAN
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • Wi-Fi / Bluetooth
  • Audio connectors
  • Flash BIOS Button
  • HDMI?
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • USB 3.2 Gen 2×2 20Gbps (Type-C)
OPERATING SYSTEM Support for Windows? 11 64-bit Windows? 10 64-bit
PCB Dimension (W ? L) ATX
243.84mmx304.8mm
Warranty 3 Years
Note *** Features Price Specifications are subject to change without notice.
  • PLATFORM
    AMD
  • SOCKET
    AM5
  • Chipset
    B650
  • SUPPORTED MEMORY TYPE
    DDR5
  • MAX MEMORY SUPPORT
    192 GB
  • FORM FACTOR
    ATX

Questions and Answers

Q. With it supports Ryzen 5 8500G 07/02/2024

A. Yes after a BIOS update

Malemnganba Beishamayum (Verified Buyer )

Q. Can i over clock ryzen 5 7600x in this mobo? 16/01/2024

A. Overclocking isn’t advised

Hrithik Sengupta (Verified Buyer )

Q. Can this mobo handel ryzen5 7600x or should I go for another mobo (plz recomend if so.) 15/01/2024

A. Yes it can

Hrithik Sengupta (Verified Buyer )

Q. can i install ddr4 rams in this ddr5 mobo 15/01/2024

A. Ofcourse not

Hrithik Sengupta (Verified Buyer )
