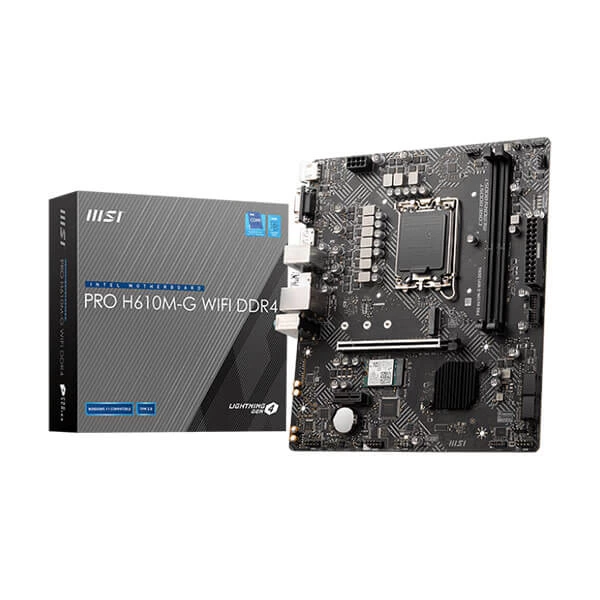

MSI Pro H610M-G WIFI DDR4 Motherboard

Processor socket LGA1700

• 2x DDR4 memory slots support up to 64GB
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
• Supports Dual-Channel mode
• Supports non-ECC un-buffered memory

• 1x PCIe x16 slot (From CPU)
• Supports up to PCIe 4.0 x16
• 1x PCIe x1 slot
• Supports PCIe 3.0 x1

Intel? Wi-Fi 5

• Supports 802.11 a/b/g/n/ac MU-MIMO Rx 2.4GHz/ 5GHz up to 433 Mbps
• Supports Bluetooth? 4.2

• 1x HDMI? 2.1 with HDR port supports a maximum resolution of 4K 60Hz
• 1x VGA port supports a maximum resolution of 2048×1536 50Hz 2048×1280 60Hz 1920×1200 60Hz
• 1x DisplayPort 1.4 port supports a maximum resolution of 4K 60Hz

• 1x M.2 slot (Key M from chipset)
• Supports up to PCIe 3.0 x4
• Supports up to SATA 6Gb/s
• Supports 2242/ 2260/ 2280 storage devices
• Supports Intel? Smart Response Technology for Intel Core? processors

Intel? H610 Chipset

• 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel 2 ports available through the internal USB connector)
• 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G) 2 ports available through the internal USB 2.0 connector)

Realtek? ALC897 Codec

• 7.1-Channel High Definition Audio

• 1x Intel? I219V 1Gbps LAN controller

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector

• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector

• 1x Front panel audio connector
• 2x System panel connector
• s 1x Chassis Intrusion connector
• 1x TPM module connector

• 1x Clear CMOS jumper

• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 4x EZ Debug LED

• HDMI?
• VGA
• DisplayPort
• Keyboard/Mouse
• USB 3.2 Gen 1 5Gbps Type-A
• LAN port
• Audio connector
• USB 2.0

• mATX Form Factor
• 9.61 x 8.31 in. (24.4 cm x 21.1 cm)
