| Model |

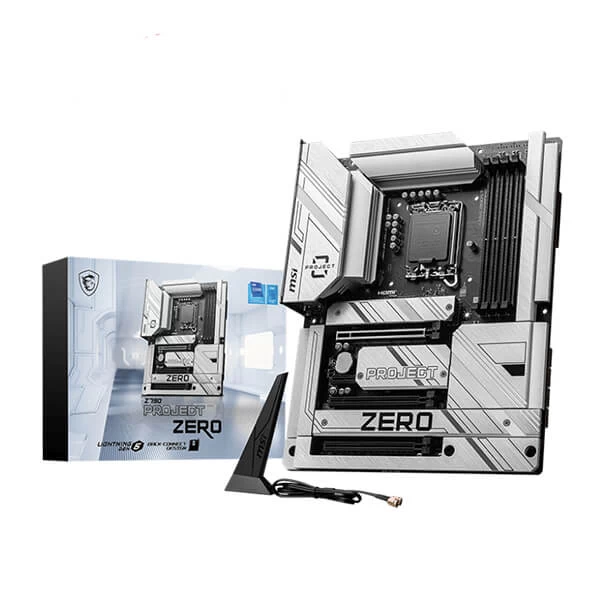

Z790 PROJECT ZERO |
| Chipset |
INTEL Z790 |
| CPU |
Support Intel? Core? 14th/ 13th/ 12th Gen Processors Intel? Pentium? Gold and Celeron? Processors
LGA1700 |
| Memory |
4x DDR5 UDIMM Maximum Memory Capacity 256GB
Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
- 1DPC 1R Max speed up to 7200+ MHz
- 1DPC 2R Max speed up to 6600+ MHz
- 2DPC 1R Max speed up to 6400+ MHz
- 2DPC 2R Max speed up to 5600+ MHz
Supports Dual-Channel mode
Supports non-ECC un-buffered memory
Supports Intel? Extreme Memory Profile
|
| Onboard Graphics |
Support HDMITM 2.1 with HDR maximum resolution of 4K 60Hz*
Support DP 1.4 maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
|
| Slot |
- 3x PCI-E x16 slot
- 1x PCI-E x1 slot
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
|
| Storage |
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode supports 2280/2260/2242 devices
6x SATA 6G |
| RAID |
Supports RAID 0 RAID 1 RAID 5 and RAID 10 for SATA storage devices |
| USB |
- 4x USB 2.0 (Rear)
- 4x USB 2.0 (Front)
- 2x USB 3.2 Gen1 Type A (Rear)
- 4x USB 3.2 Gen1 Type A (Front)
- 1x USB 3.2 Gen2 Type A (Rear)
- 1x USB 3.2 Gen2 Type C (Front)
- 1x USB 3.2 Gen2x2 Type C (Rear)
|
| LAN |
Intel? 2.5Gbps LAN |
| WIRELESS LAN & BLUETOOTH |
Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth? 5.4** MLO 4KQAM
* 6GHz band support may depend on every country?s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
|
| Audio |
Realtek? ALC897 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output |
| Internal IO |
- 1x Power Connector(ATX_PWR)
- 2x Power Connector(CPU_PWR)
- 1x CPU Fan
- 1x Pump Fan
- 6x System Fan
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x TBT connector (JTBT supports RTD3)
- 2x Addressable V2 RGB LED connector (JARGB_V2)
- 2x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
- 4x USB 2.0 ports
- 4x USB 3.2 Gen1 Type A ports
- 1x USB 3.2 Gen2 Type C ports
- 1x USB4 card connector (JTBT_U4_1 supports RTD3)
|
| LED FEATURE |
4x EZ Debug LED |
| BACK PANEL PORTS |
- Mouse / Keyboard
- DisplayPort 1.4
- USB 2.0
- 2.5G LAN Port
- Wi-Fi / Bluetooth Antenna
- HD Audio Connectors
- Flash Bios Button
- USB 2.0
- HDMI? 2.1 Port
- USB 3.2 Gen 1 5Gbps Type-A
- USB 3.2 Gen 2×2 20Gbps Type-C
- USB 3.2 Gen 2 10Gbps Type-A
|
| OPERATING SYSTEM |
Support for Windows? 11 64-bit Windows? 10 64-bit |
| PCB Info |
ATX
243.84mmx304.8mm |
| Warranty |
3 Years |
| Note |
*** Image use for reference only
*** Features Price Specifications are subject to change without notice.
|
